• The input signal is the blue trace, output red trace.
• The input signal is taken from the input of the balanced signal attenuator, shown in above photo.
• The input signal level is the same for all measurements.
• The signal's frequency shown on the display is measured by the 'scope's frequency counter.
• The signal's output level shown on the display is measured by the 'scope's waveform measurement function.
• These are all single-shot measurements. Signal-averaged measurements would be cleaner and prettier.
• The "Flat" preamplifier output was used, since the RIAA filter would substantially attenuate any high frequency signal.

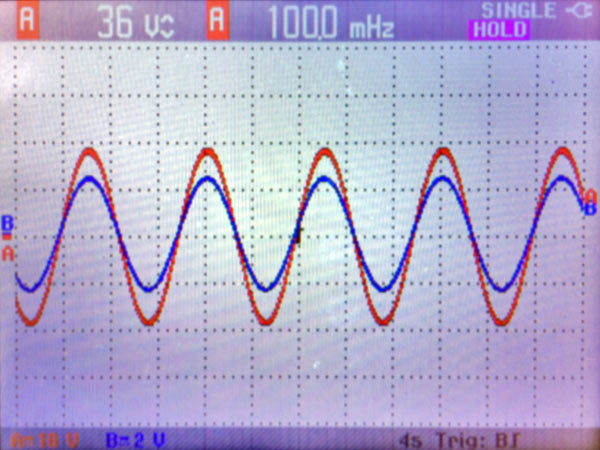

0.1 Hz, 36 volts peak to peak output

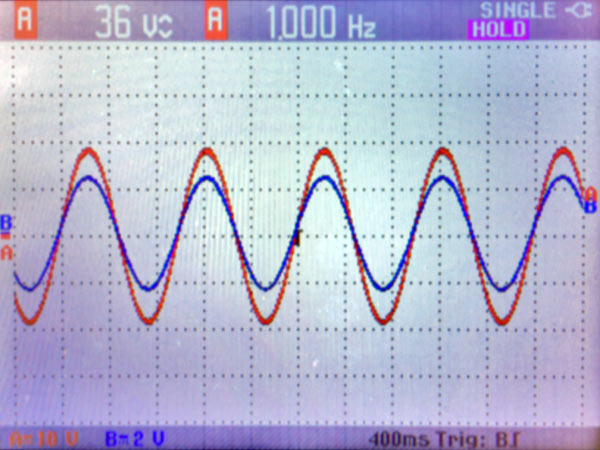

1 Hz, 36 volts peak to peak output

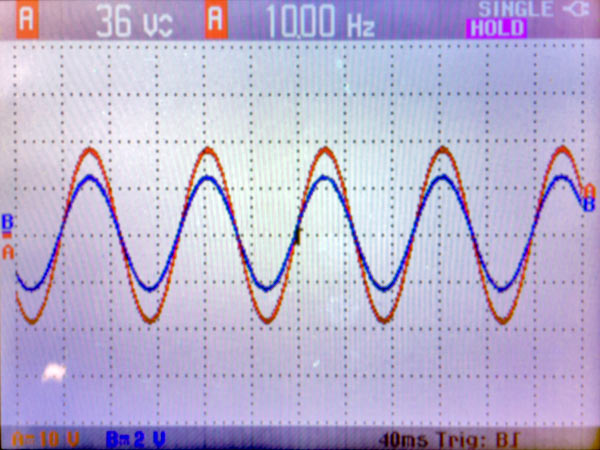

10 Hz, 36 volts peak to peak output

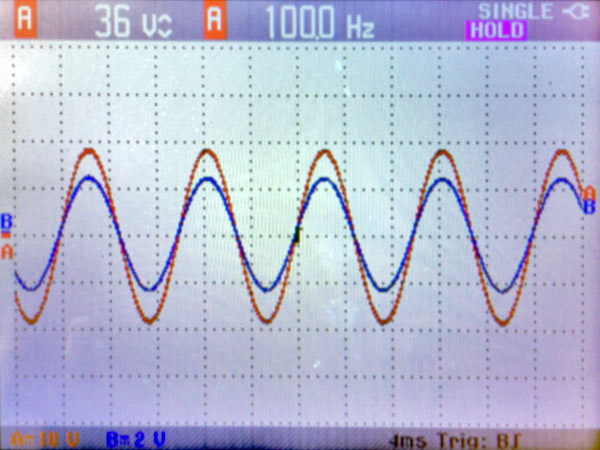

100 Hz, 36 volts peak to peak output

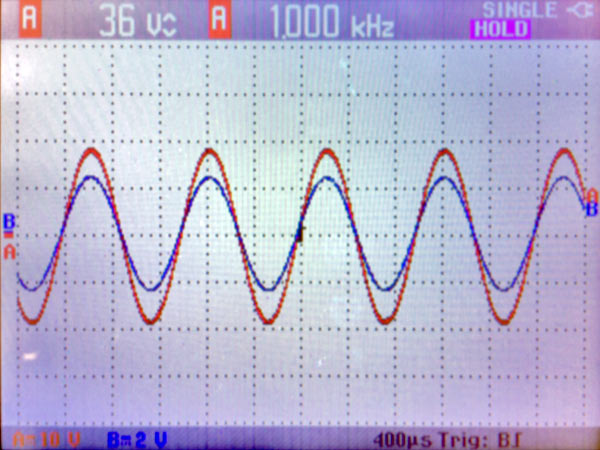

1 kHz, 36 volts peak to peak output

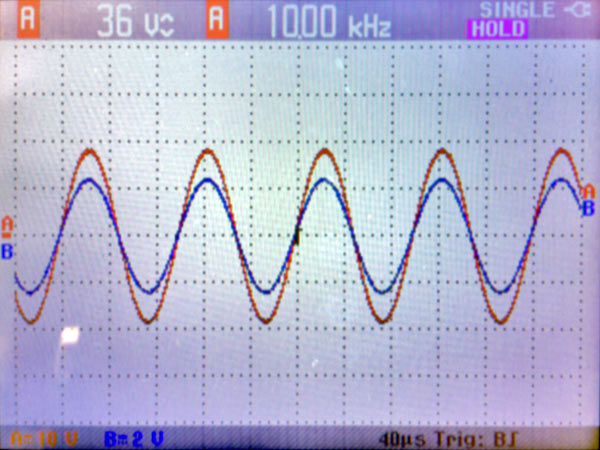

10 kHz, 36 volts peak to peak output

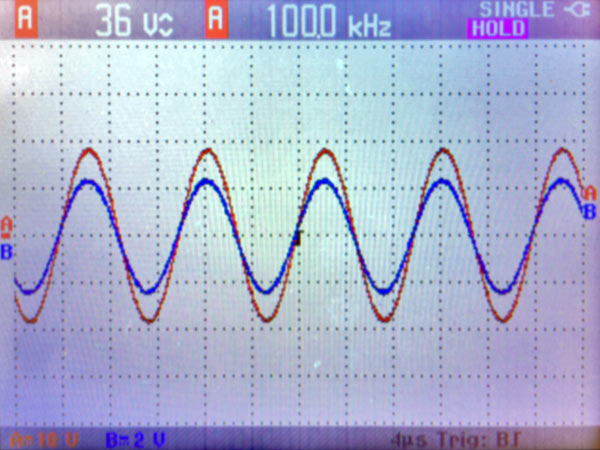

100 kHz, 36 volts peak to peak output

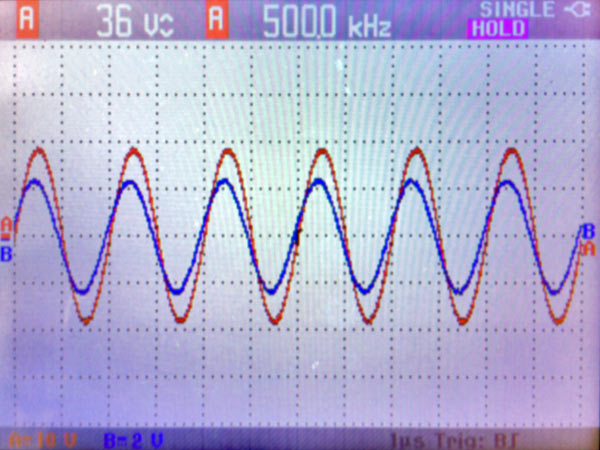

500 kHz, 36 volts peak to peak output
