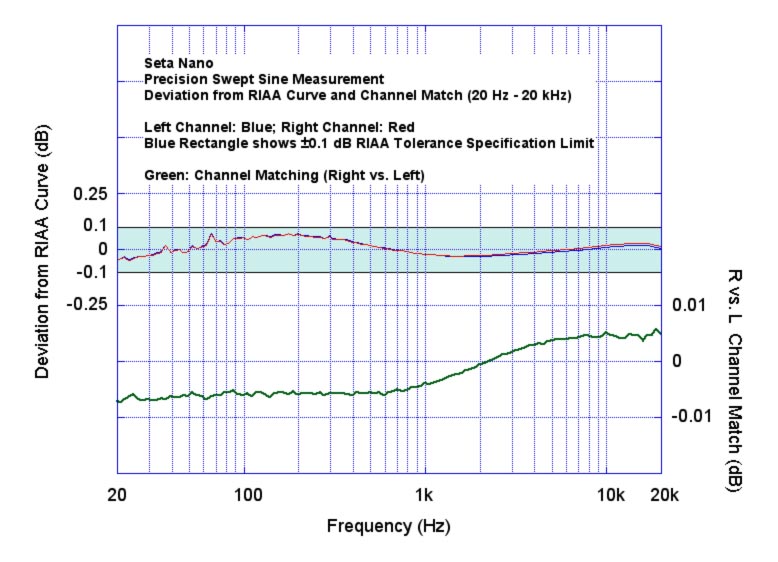

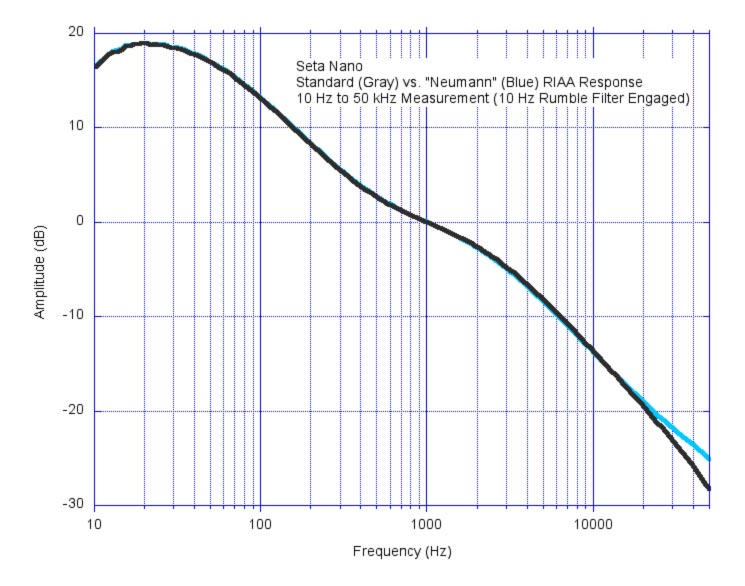

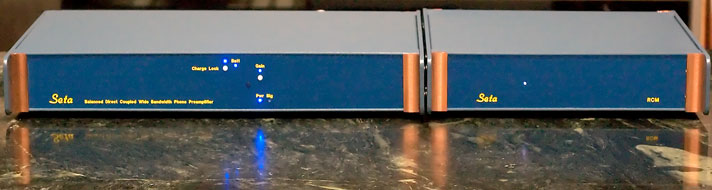

Seta phonograph preamplifier measurements

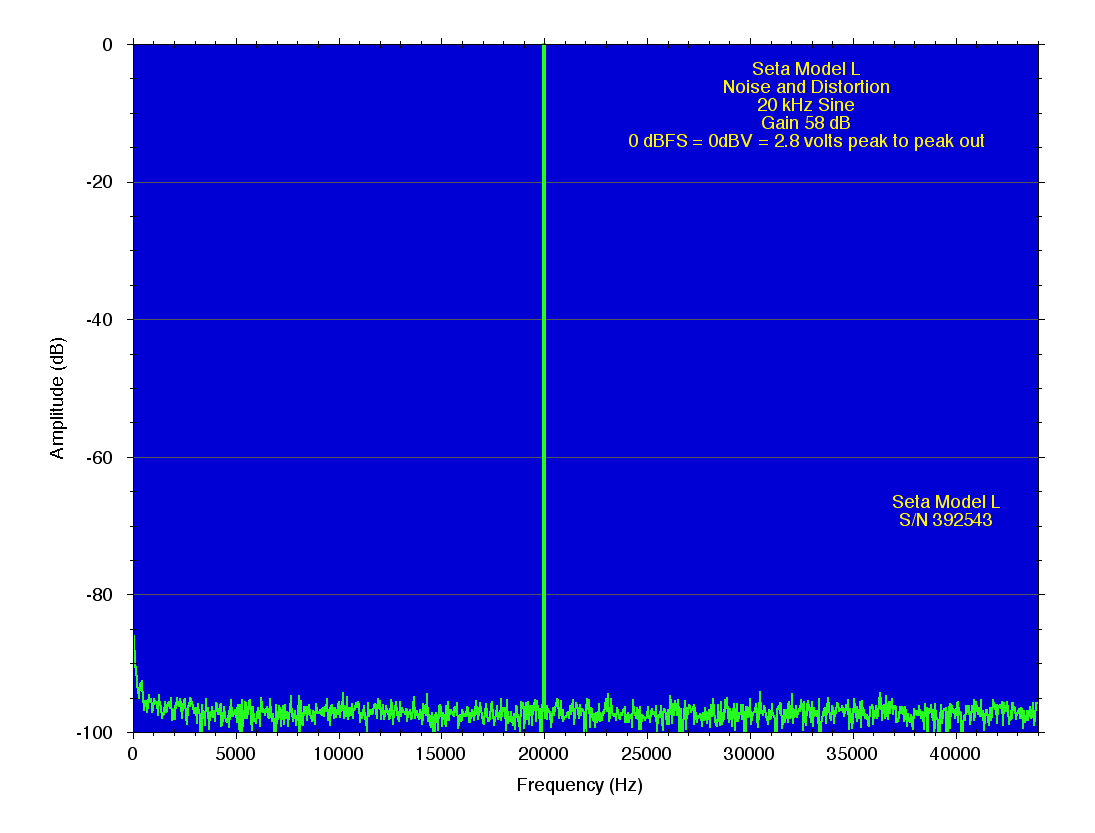

Harmonic Distortion, Seta Model L at 40 dB Gain, 1 kHz / 20 kHz

click images to enlarge



Harmonic Distortion, Seta Model L at 58 dB Gain, 1 kHz / 20 kHz

click images to enlarge

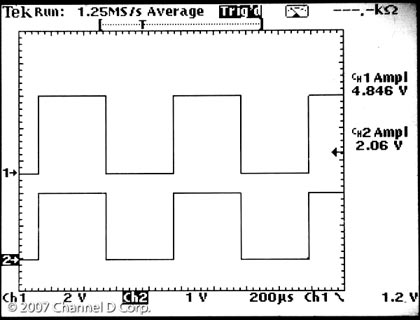

1.2 kHz square wave reproduction, Seta Model L

Top trace: input signal, 4.846 mV (through 1000:1 attenuator)

Bottom trace: output, 52 dB gain (single ended), 600 ohm load

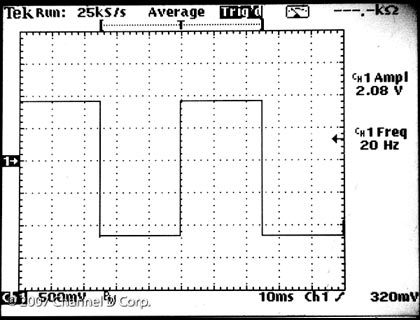

20 Hz square wave reproduction, 600 ohm load

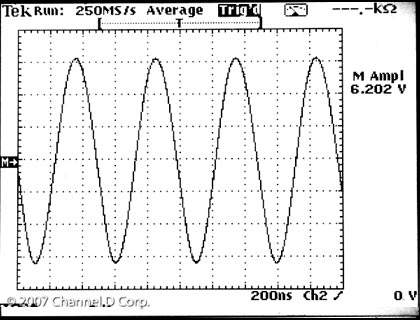

2 MHz sine wave reproduction, Seta Model L

58 dB gain, 600 ohm load

Over 6 volts clean peak to peak output, even at this extremely high frequency



Seta Model H

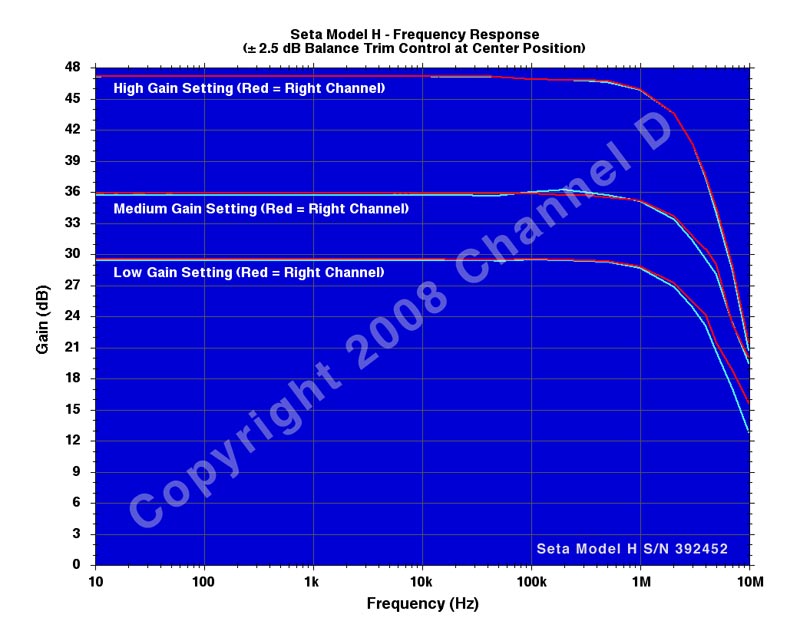

Frequency Response vs. Gain

click image to enlarge



Click here for Seta RIAA Correction Module Measurements
