Apple 867 MHz G4 DP Mirror Drive Door Built-in Audio

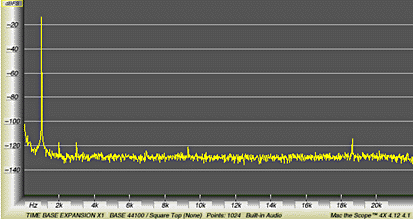

Input 1 kHz Distortion and Noise:

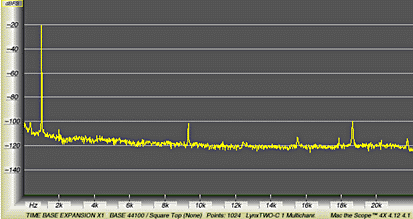

Output 1 kHz Distortion and Noise:

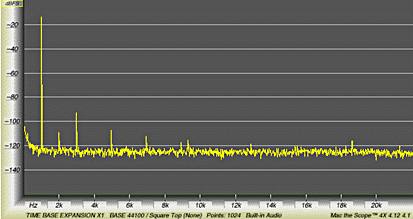

Full duplex 1 kHz Distortion and Noise:

Measurement conditions:

• Measurement software: Mac the Scope 4X 4.1, 2048 point (X2) FFT, Square window function, linear frequency axis.
• Stimulus signal was generated by Mac the Scope / Waavebox. Signal: 1 kHz, DIGITAL LOCK enabled, 1024 sample latency (e.g., sequence length).
• Channel 1 is shown, and represents Channel 2.
• Plot range is -160 dB to 0 dBFS.
• Reference Measurement device for input and output tests: LynxTWO
• Note: Duplex noise floor is lower than measured output noise floor because of noise in output circuitry (input gain used with lower output level gave a lower noise level).

Note: the distortion measurements may be replicated with the free, demo version of Mac the Scope (the session timeout limit provides ample time for making the measurement).

• Here are links to some other measurements.
• Here is a procedure for making the distortion measurement.
