Mac the Scope

Multifunction signal analyzer

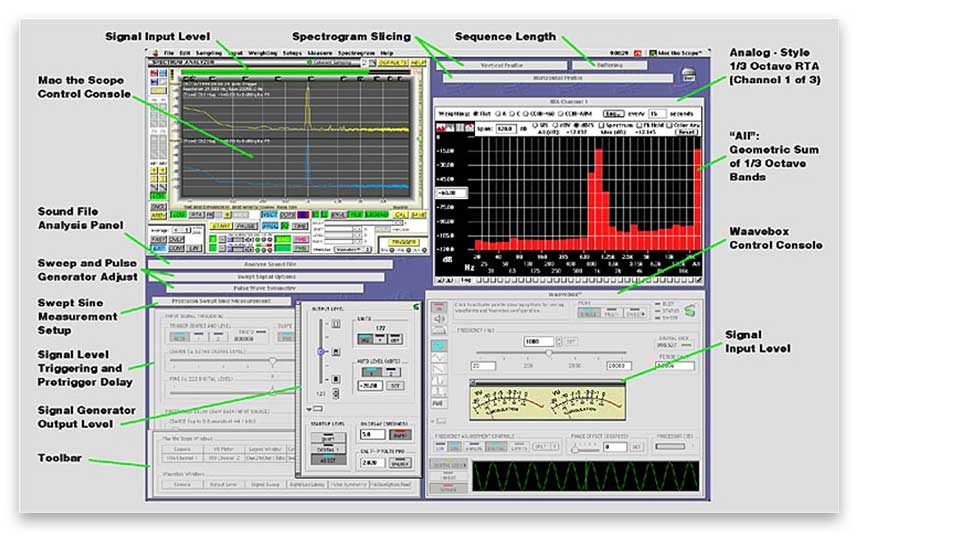

Channel D Pro Audio Product - Professional quality signal analyzer, vector trace oscilloscope and 1/3 octave RTA - includes a spectrogram / sonogram display and a versatile, easy to use, precision waveform and signal generator.

Uses native Macintosh sound input capabilities or third party I/O device support (via Apple CoreAudio)
Sound output port may simultaneously be used for test signal generation ("full duplex") with Waavebox
Offline file analysis: arbitrary sample rates (up to 2 GHz), 8 / 16 / 20 / 24 / 32 bits per sample, arbitrary number of channels, AIFF and Sound Designer II file support
The 1/3 octave RTA pioneered the use of digitally implemented analog filters (as we first demonstrated in 1999 at MACWORLD EXPO, San Francisco, and at the Audio Engineering Society Convention in New York) for unprecedented amplitude accuracy, out of band signal rejection and transient response for an RTA on a personal computer
Compatible with Mac OS X 10.2.6 and later (including Mac OS X 10.6 Snow Leopard), G3, G4, G5, Intel processor
Uses Macintosh native (16 / 24-bit) input and output for audio frequency analysis (nothing extra to buy)
Uses third party input devices (not limited to audio frequencies)
Uses analyze AIFF, Sound Designer II / interleaved binary files - again, not limited to audio frequencies - arbitrary sample rates and word sizes (8, 16, 24, 32 bits)
Customizable Software Features: license only what you need 1
Multithreaded i/o and processing kernel
Improved, faster, precision swept sine measurements
Waavebox signal generator
Ultra-flat pink noise (+ / - 0.15 dB, 20 Hz - 16 kHz measured with 1/3 octave RTA); switchable low cut filter (18 Hz)
1/3 octave RTA frequency range has been extended to cover bands to as low as 2.5 Hz - while providing nearly perfect amplitude accuracy (+ / - 0.05 dB, 20 Hz - 16 kHz). The RTA uses digitally synthesized, true bandpass filters that surpass crude, hybrid FFT - based RTAs (try measuring a swept sine signal with an FFT based RTA...)

Our international customer base includes

Audio Professionals and Enthusiasts / Hobbyists - sound reinforcement, loudspeaker measurement and design, listening room analysis, audio recording analysis
University / Government / Industrial Laboratory Research - physics, chemistry, medicine, psychology, animal behavior, mechanical engineering
Academic Instruction - chemistry, physics, music. Multi-license, multiuser network server installations are available.

Comments from Mac the Scope users |

"...this is absolutely great!!" "I do like the program very much! ... this is really the best ... I've found so far (for a reasonable price)." "...brilliant piece of software..." "A very nice and stable product. Already have used it for an audio ... project." "Cool - - amazing!" "I'm sold on MtS..." "Happy to see that your product has been done 'correctly." "Very pleased with it."

Demo

Buy

Mac the Scope 4X version 4.28

Includes Mac the Scope, Waavebox, hyperlinked documentation, example automation scripts

Mac the Scope Reviews

5 out of 5 Rating for Mac the Scope 2.8.2, 3.0.2
Tucows

"Channel D Mac the Scope 2.1: SOFTWARE-BASED TEST INSTRUMENTS"
Mix Magazine - February 1999 issue
Erik Hawkins

Honored with an EQ Audio Engineering Society Blue Ribbon Award nomination at the 107th Audio Engineering Society Convention in New York City."
Audio Engineering Society -
Channel D's Booth at AES Convention
